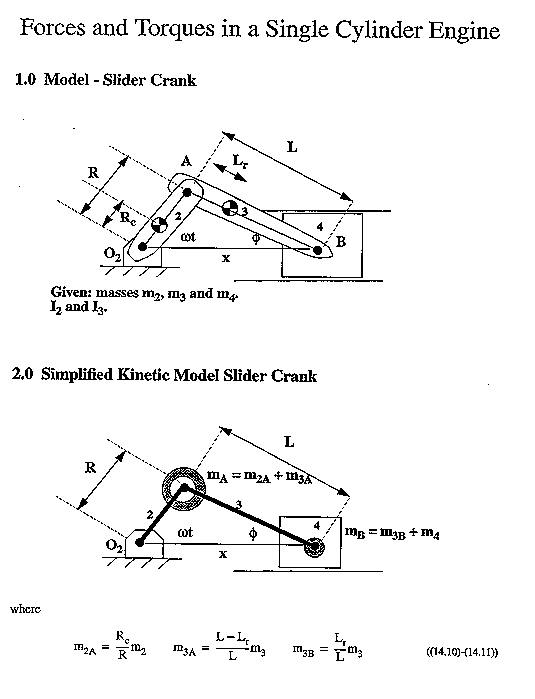

1.0 Slider-Crank Model, 2.0 Simplified Slider-Crank Model

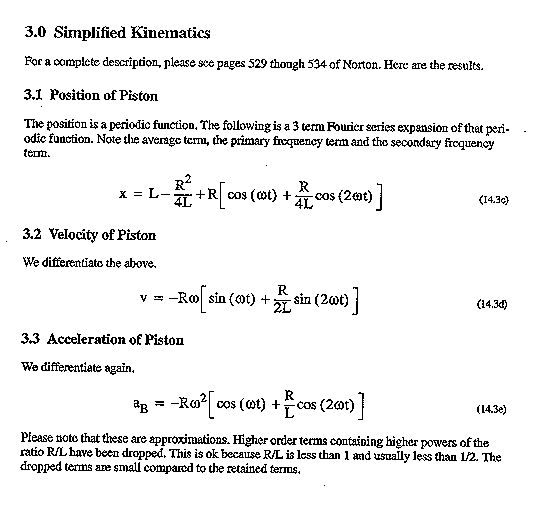

3.0 Simplified Kinematics

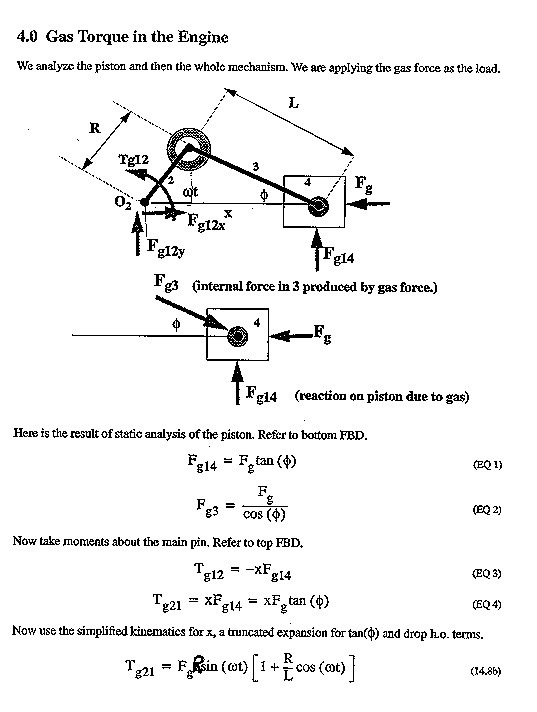

4.0 Gas Torque in Engine

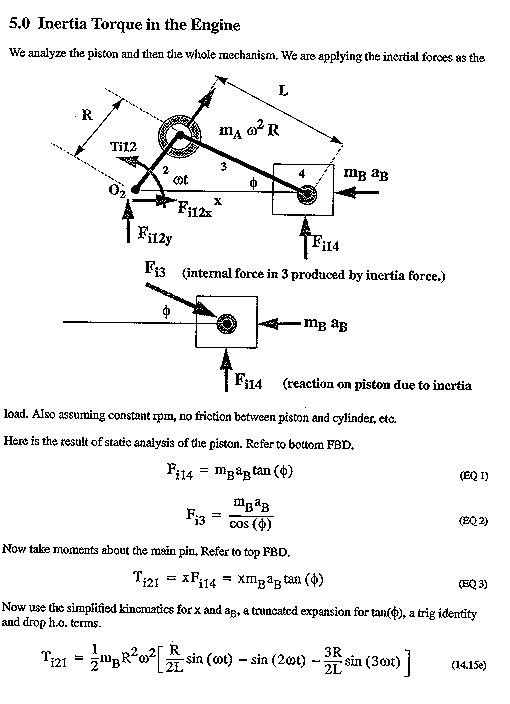

5.0 Inertia Torque in Engine

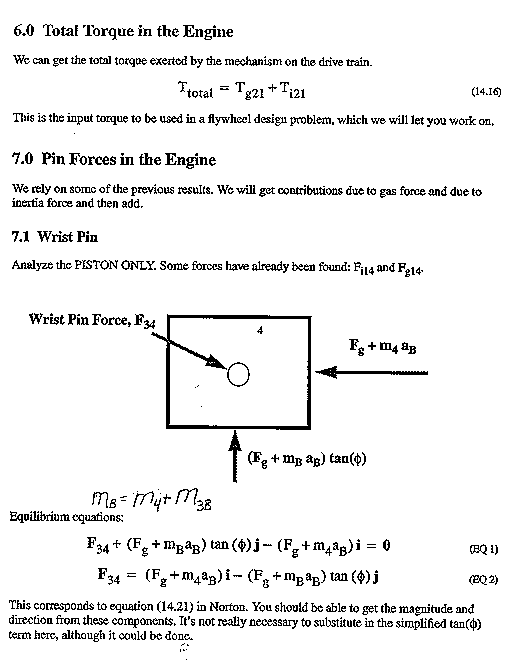

6.0 Total Torque, 7.1Wrist Pin Forces

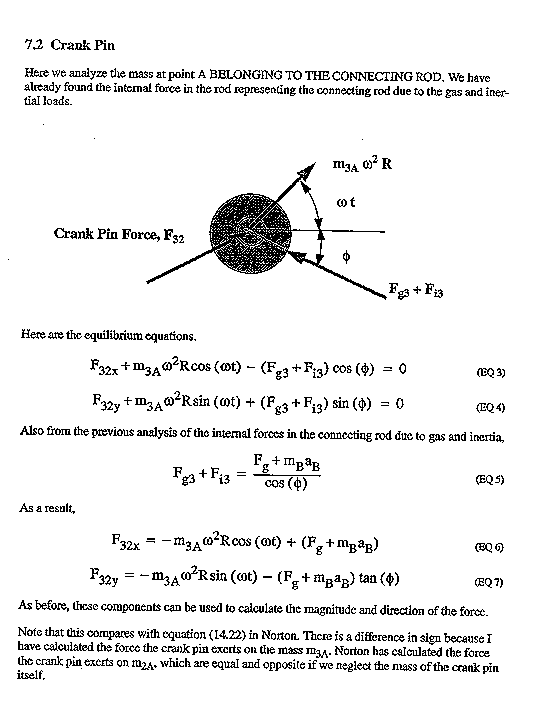

7.2 Crank Pin Forces

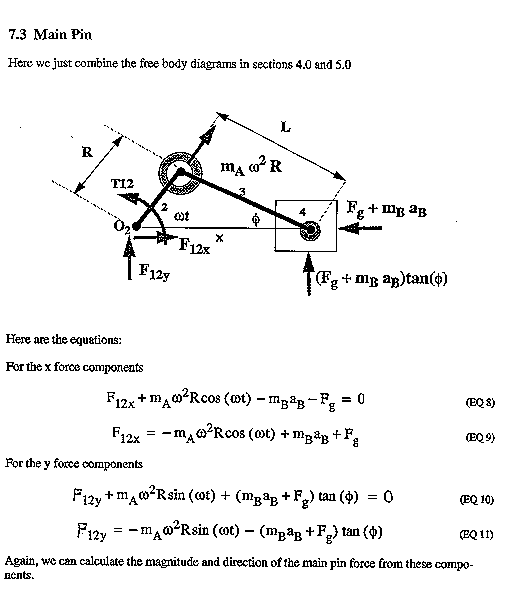

7.3 Main Pin Forces
