Energy Storage Elements
Current-Voltage Relationship of Capacitors
Problem #2

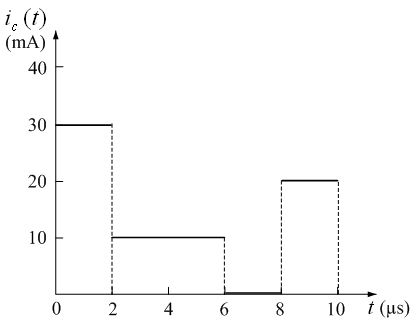

Given this current waveform applied to a 10μF capacitor, find the capacitor's voltage as a function of time, given that v(0) = 0 volts.
Need a hint?
For each interval, write down i(t). Then use the V-I relationship function to find v(t).
