Problem ID: 93
Problem Filename: thev_ind_ex4
Keywords:
Circut Description:
- Independent Current Source
- Resistor
- Independent Voltage Source
Analysis Method:
- Thèvenin Equivalents
- Lookback Resistance
- Resistor Combinations
- Superposition
- Delta-Wye Conversion
- Current Divider
Math Method:
- Algebra
Thèvenin Equivalents
Independent Sources
Problem #4

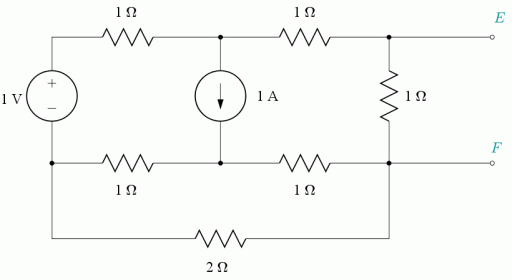

Find the Thèvenin equivalent circuit at the terminals E-F.
Need a hint?
Find Rt using the lookback resistance method. Then find Vt using superposition.
