Resistive Circuits
Equivalent Resistance
Problem #4

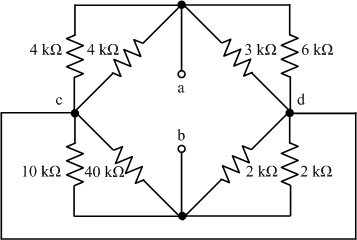

Obtain the equivalent resistance at terminals a-b.
Need a hint?
First make the obvious resistor simplifications. Remember that resistors that share the same pair of nodes are in parallel. Notice that c and d are connected to each other, so they're like one node. With that knowledge, make the final simplifications.
