Problem ID: 66
Problem Filename: mesh_sharedcs_ex3
Keywords:
Circut Description:
- Independent Voltage Source
- Resistor
- Independent Current Source
Analysis Method:
- Mesh Current Analysis
- Ohm's Law
- Kirchhoff's Voltage Law
Math Method:
- Algebra
- Matrix Algebra
Mesh Analysis
Current Source in Two Meshes (Supermeshes)
Problem #3

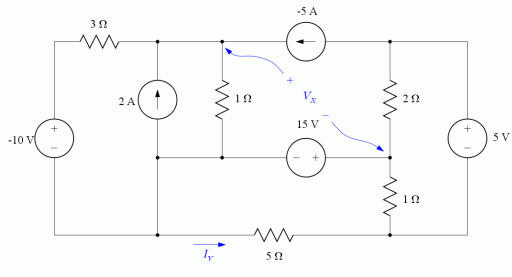

Use mesh analysis to find Vx and Iy.
Need a hint?
Use the concept of a supermesh to reduce the number of mesh current equations you need. Write out three mesh current equations and two supermesh relations. Use a matrix to solve the system, and then use KVL and the mesh currents to solve for Vx and Iy.
