Problem ID: 16
Problem Filename: opAmp_inv_ex2
Keywords:
Circut Description:
- two stage
- operational amplifier
- feedback resistor
- voltage gain
- Av
Analysis Method:
- Ideal opamp model
Math Method:
- algebra
Operational Amplifiers
Inverting
Problem #2

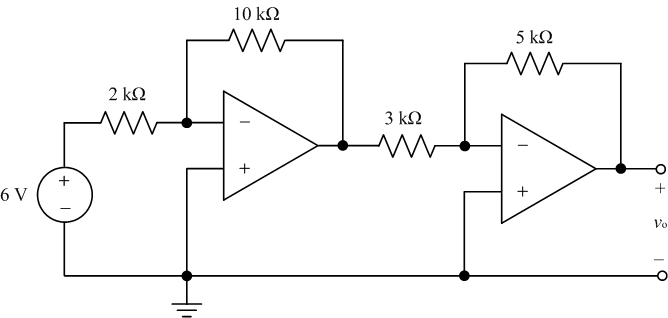

In this problem, we’ll assume that both operational amplifiers are ideal. We want to determine the output voltage VO.
Need a hint?
Split the circuit into two stages.
