View All : Main > Courses > Rose-Hulman Institute of Technology > ES203 - Electrical Systems > Week 6 > Problem #2
Problem ID: 60
Problem Filename: mesh_indvs_ex2
Keywords:
Circut Description:
  • Independent Voltage Source
  • Resistor
Analysis Method:
  • Mesh Current Analysis
  • Ohm's Law
Math Method:
  • Algebra
  • Matrix Algebra

Mesh Analysis

Independent Voltage Sources

Problem #2

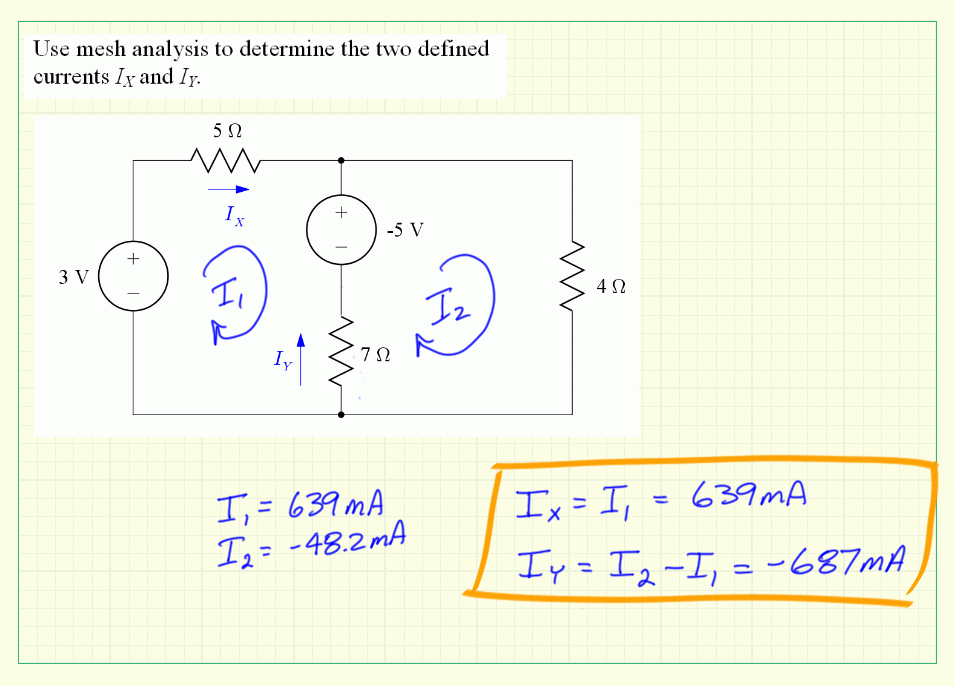

Use mesh analysis to determine the two defined currents, Ix and Iy.

diagram

solution

Check your result

Additional files available

Video Transcript Written
