Mesh Analysis
Independent Voltage Sources
Problem #1

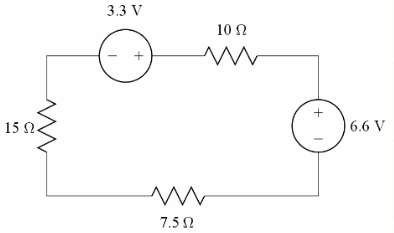

Use mesh current analysis to find the voltage across each resistor.
Need a hint?
Define one mesh current, I1. Then write a KVL equation around the mesh. Solve for I1. Then, for each resistor, use Ohm's law to find the voltages.
