Problem ID: 68
Problem Filename: nodal_super_ex3
Keywords:
Circut Description:
- Independent Voltage Source
- Resistor
- Independent Current Source
- Battery
Analysis Method:
- Nodal Analysis
- Supernode Analysis
Nodal Analysis
Floating Voltage Sources (Supernodes)
Problem #3

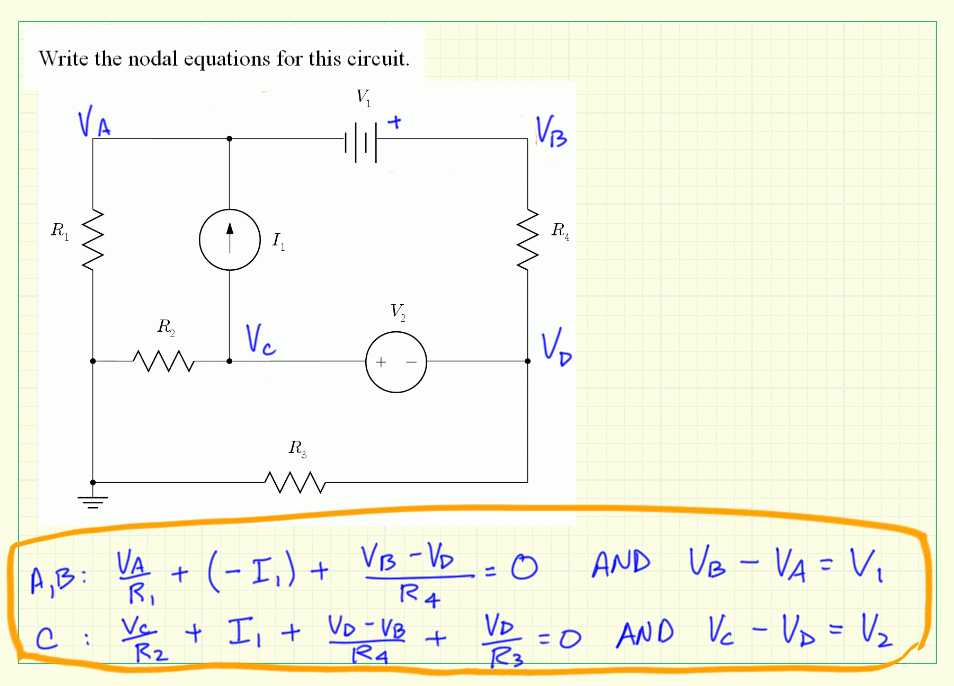

Write the nodal equations for this circuit.
Need a hint?
The nodal equations are KCL equations summing the currents away from the nodes. The two nodes with a voltage source connected between them can be treated as a supernode, so ignore the voltage source and just keep summing currents away from the supernode.
