Problem ID: 3
Problem Filename: nodal_gndvs_5
Keywords:
Circut Description:
- variable voltage source
- resistor
- circuit design
Analysis Method:

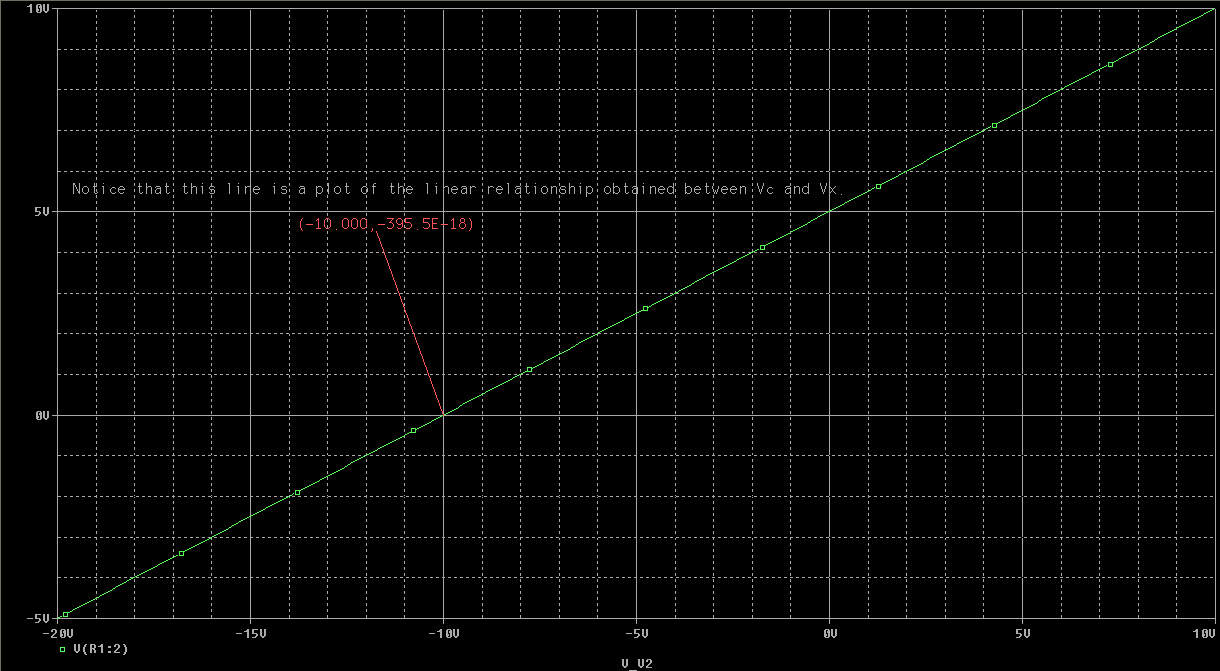

- Use nodal analysis and find a relationship between Vx and Vc
Math Method:
- Algebra
Nodal Analysis
Grounded Voltage Sources
Problem #5
How should the value of the variable voltage source Vx be adjusted to cause the voltage at node M to be zero?
Need a hint?
Write a node voltage equation at node M, set VM = 0, and then write VX in terms of the other circuit components.
