Problem ID: 71
Problem Filename: resistive_equivResistance_ex2
Keywords:
Circut Description:
- Resistor
Analysis Method:
- Equivalent Resistor Formulas
Math Method:
- Algebra
Resistive Circuits
Equivalent Resistance
Problem #2

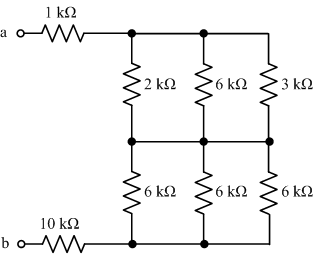

Reduce the circuit to a single resistor at terminals a and b.
Need a hint?
Remember that resistors that share the same pair of nodes are in parallel. It's also very important to notice that a node is NOT a "solder dot." A node is an area of interconnection of elements.
