Problem ID: 19
Problem Filename: resistive_equivResistance_ex7
Keywords:
Circut Description:
- Resistor
Analysis Method:
- Delta-Wye Resistor Simplifications
- Series-Parallel Resistor Combinations
Math Method:
- Algebra
Resistive Circuits
Equivalent Resistance
Problem #7

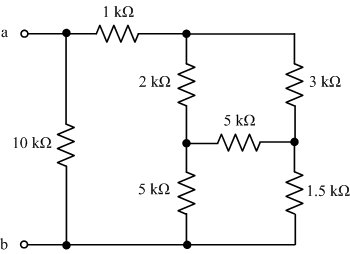

Simplify the circuit between terminals a and b.
Need a hint?
Convert the delta-connected circuit to a wye-connected one. Then make series and parallel resistor combinations.
