View All : Main > Courses > Rose-Hulman Institute of Technology > ES203 - Electrical Systems > Week 4 > Problem #2
Problem ID: 175
Problem Filename: resistive_currentDivider_ex2
Keywords:
Circut Description:
  • Resistor
Analysis Method:
  • Current Divider Formulas
Math Method:
  • Algebra

Resistive Circuits

Current Divider

Problem #2

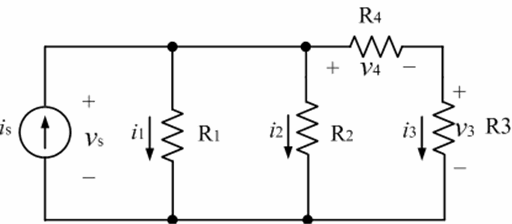

Given that i = 6mA, v = 6V, 2i1 = 3i2, i2 = 2i3, v4:v3 = 2:1, we need to specify the resistors to meet the following specification.

diagram
Need a hint?

solution

Check your result

Additional files available

Video Transcript Written
