Problem ID: 100
Problem Filename: energyStorage_equivCapac_ex2
Keywords:
Circut Description:
- Independent Voltage Source
- Capacitor
Analysis Method:
- Equivalent Capacitance
Math Method:
- Algebra
Energy Storage Elements
Equivalent Capacitance
Problem #2

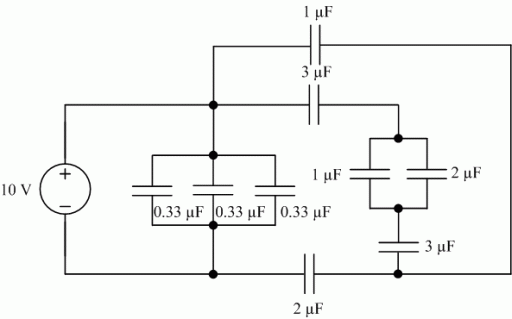

Find the equivalent capacitance seen by the voltage source.
Need a hint?
Make two parallel capacitor combinations. Follow that with one series and one parallel combination.
