Problem ID: 20
Problem Filename: resistive_kclKvl_ex1
Keywords:
Circut Description:
- Independent Voltage Source
- Resistor
- Independent Current Source
Analysis Method:
- Kirchhoff's Current Law
- Kirchhoff's Voltage Law
Math Method:
- Algebra
Resistive Circuits
Kirchhoff's Current and Voltage Laws
Problem #1

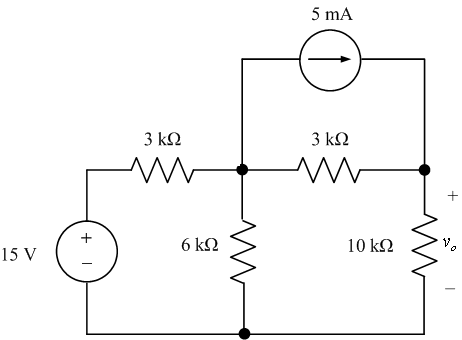

Find the value of V0.
Need a hint?
Write down the passive sign convention voltages and currents for the various meshes in the current. Write an Ohm's Law equation for each resistor. Write three KCL and KVL equations. Solve the system.
