Problem ID: 2
Problem Filename: cktvars_psc_ex1
Keywords:
Circut Description:
- Independent Voltage Source
- Resistor
- Independent Current Source
- Battery
Analysis Method:
- Passive Sign Convention Rules
Circuit Variables
Passive Sign Convention
Problem #1

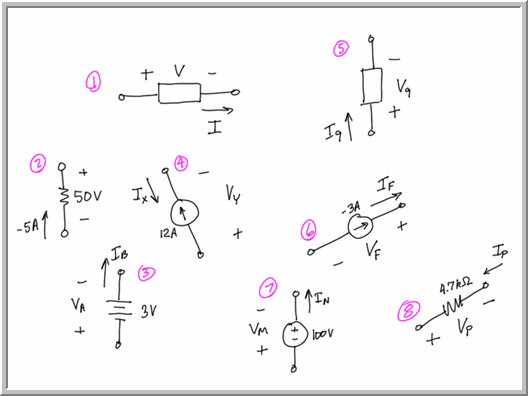

Which devices are labeled according to the passive sign convention (PSC)?
Need a hint?
Review Passive Sign Convention rules. Be sure to note which terminal the defined current is entering.
