Problem ID: 15
Problem Filename: proportionality_vs_1
Keywords:
Circut Description:
- independent voltage source
- resistor
Analysis Method:
- proportionality
Math Method:
- algebra
Proportionality
Voltage Source
Problem #1

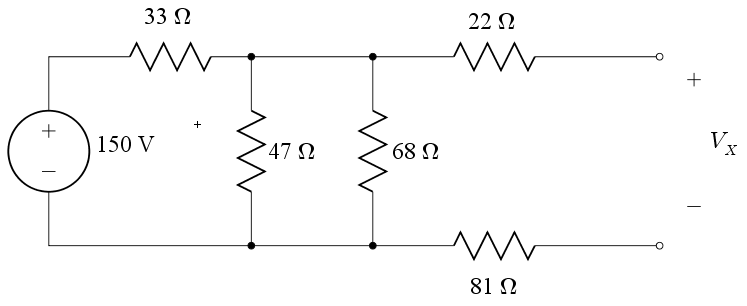

Use the proportionality property of linear circuits to find the voltage VX.
Need a hint?

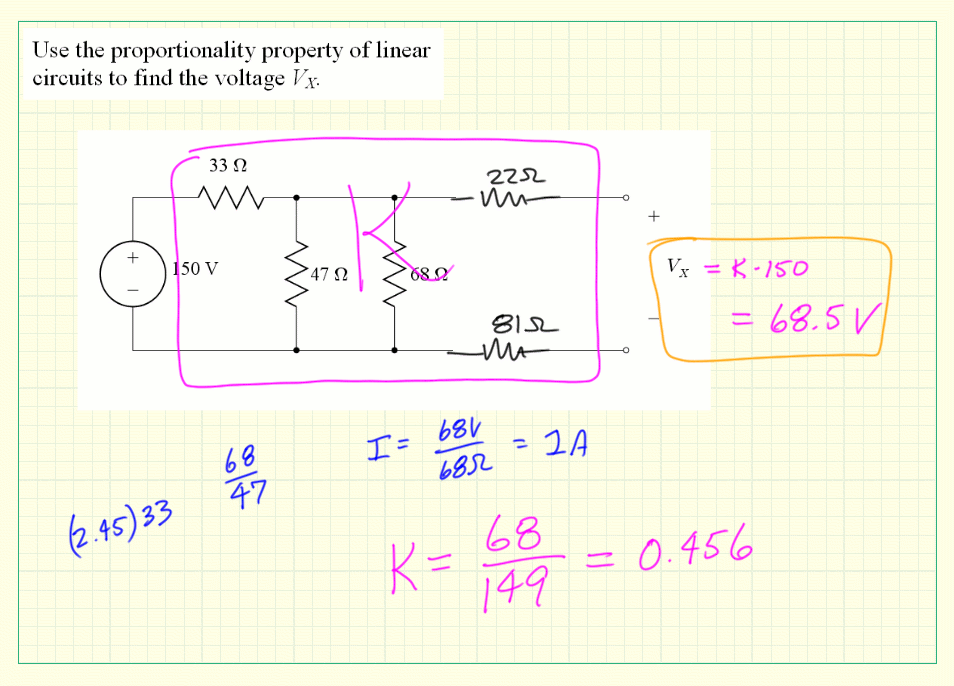

Choose an arbitrary value for VX, back-solve to find the value of the voltage source, find the proportionality constant K using these two values, then apply the proportionality property as IX = K150.
