Problem ID: 106
Problem Filename: proportionality_cs_1
Keywords:
Circut Description:
- independent current source
- resistor
Analysis Method:
- proportionality
Math Method:
- algebra
Proportionality
Current Source
Problem #1

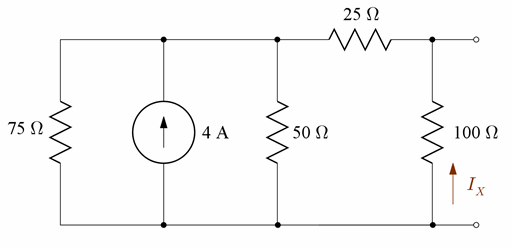

Use the proportionality property of linear circuits to find the current IX.
Need a hint?

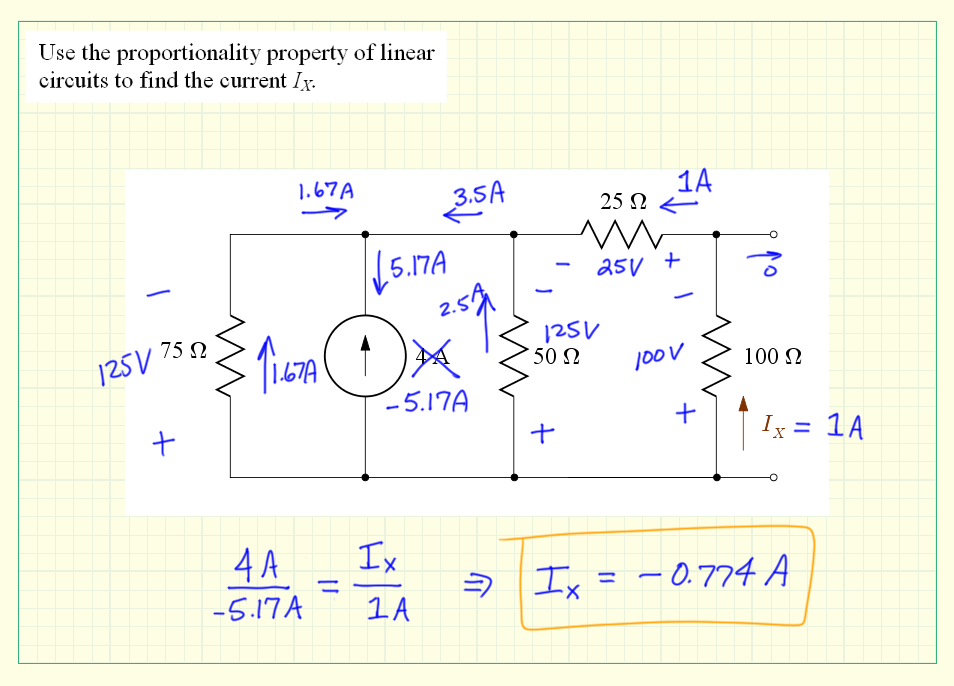

Choose an arbitrary value for IX, back-solve to find the value of the current source, find the proportionality constant K using these two values, then apply the proportionality property as IX = K4.
