Resistive Circuits
Kirchhoff's Current Law
Problem #1

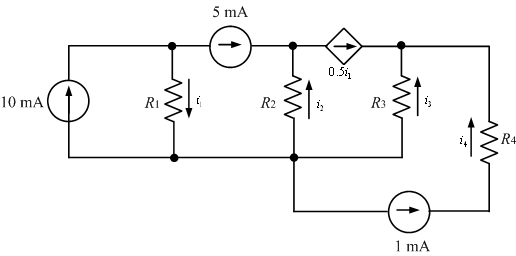

Determine the current through each of the resistors in this circuit.
Need a hint?
Identify all of the nodes in the circuit. Then write a KCL equation for each node, solving for the currents as you progress. Remember that a KCL equation shows that the sum of the currents through a node is zero. Be careful about the sign conventions you use.
