Problem ID: 22
Problem Filename: resistive_kclKvl_ex3
Keywords:
Circut Description:
- Independent Current Source
- Resistor
- Dependent Voltage Source
Analysis Method:
- Kirchhoff's Current Law
- Kirchhoff's Voltage Law
- Ohm's Law
Math Method:
- Algebra
Resistive Circuits
Kirchhoff's Current and Voltage Laws
Problem #3

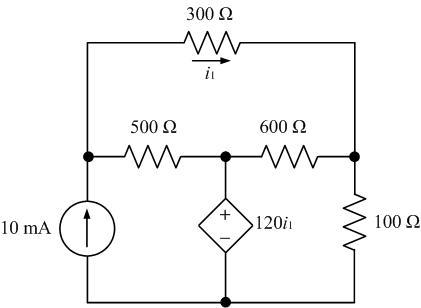

Find the current through the 300 Ω resistor.
Need a hint?
Write out the passive sign convention currents and voltages for each element. Then write four Ohm's law equations, three KCL equations, and three KVL equations. Solve the system for i1.
