Problem ID: 105
Problem Filename: resistive_kclKvl_ex5
Keywords:
Circut Description:
- generic element
Math Method:
- algebra
Resistive Circuits
Kirchhoff's Current and Voltage Laws
Problem #5

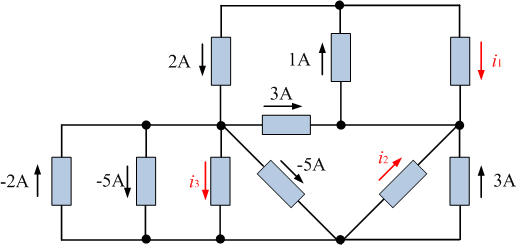

Find the currents i1, i2, and i3 using KCL.
Need a hint?
Find all of the nodes in the circuit, then apply one of the forms of KCL, i.e., "algebraic sum of currents entering a node is zero" or "sum of currents entering a node is equal to the sum of currents leaving a node."
