Problem ID: 72
Problem Filename: resistive_equivResistance_ex3
Keywords:
Circut Description:
- Resistor
- Independent Voltage Source
Analysis Method:
- Equivalent resistor formulas
- Ohm's law
Math Method:
- Algebra
Resistive Circuits
Equivalent Resistance
Problem #3

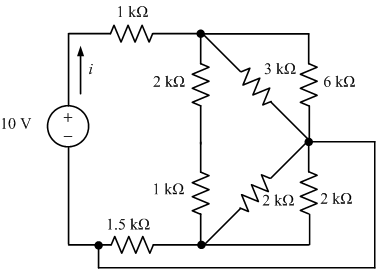

Find the current i in the circuit.
Need a hint?
To find the current i, you'll first need to find the equivalent resistance of the resistor network. Then use Ohm's law (V = I*R) to find i.
