Problem ID: 70
Problem Filename: resistive_equivResistance_ex1
Keywords:
Circut Description:
- Resistor
Analysis Method:
- Equivalent Resistor Formulas
Math Method:
- Algebra
Resistive Circuits
Equivalent Resistance
Problem #1

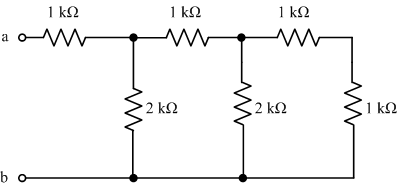

Find the equivalent resistance at terminals a and b.
Need a hint?
Use series and parallel combinations of resistors to reduce this circuit. For series resistors, Req = R1 + R2 + R3. For parallel resistors, 1/Req = 1/R1 + 1/R2 + 1/R3.
