Resistive Circuits

Voltage Divider

Problem #1

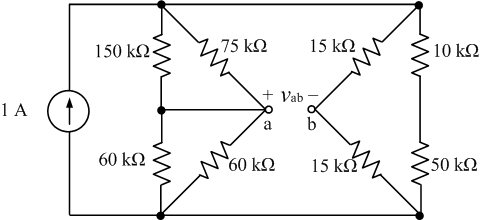

Use current division and voltage division to find the voltage vab across terminals a-b.

diagram
Need a hint?
