Resistive Circuits

Current Divider

Problem #2

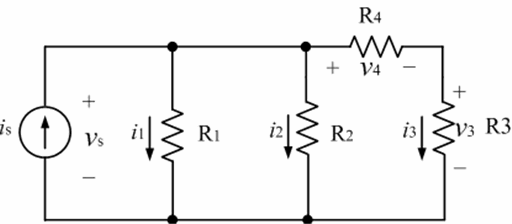

Given that i = 6mA, v = 6V, 2i1 = 3i2, i2 = 2i3, v4:v3 = 2:1, we need to specify the resistors to meet the following specification.

diagram
Need a hint?

solution

Check your result

Additional files available

Video Transcript Written
