Problem ID: 61
Problem Filename: mesh_indvs_ex3
Keywords:
Circut Description:
- Independent Voltage Source
- Resistor
Analysis Method:
- Mesh Current Analysis
- Ohm's Law
Math Method:
- Algebra
- Matrix Algebra
Mesh Analysis
Independent Voltage Sources
Problem #3

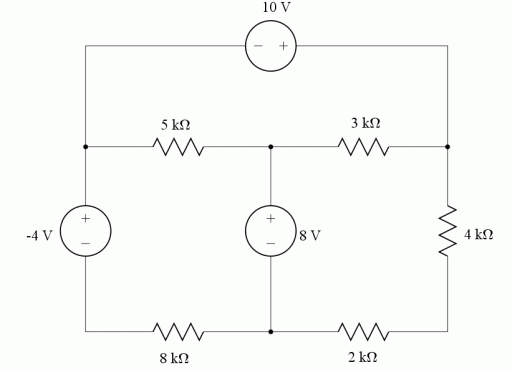

Determine all of the mesh currents in the circuit.
Need a hint?

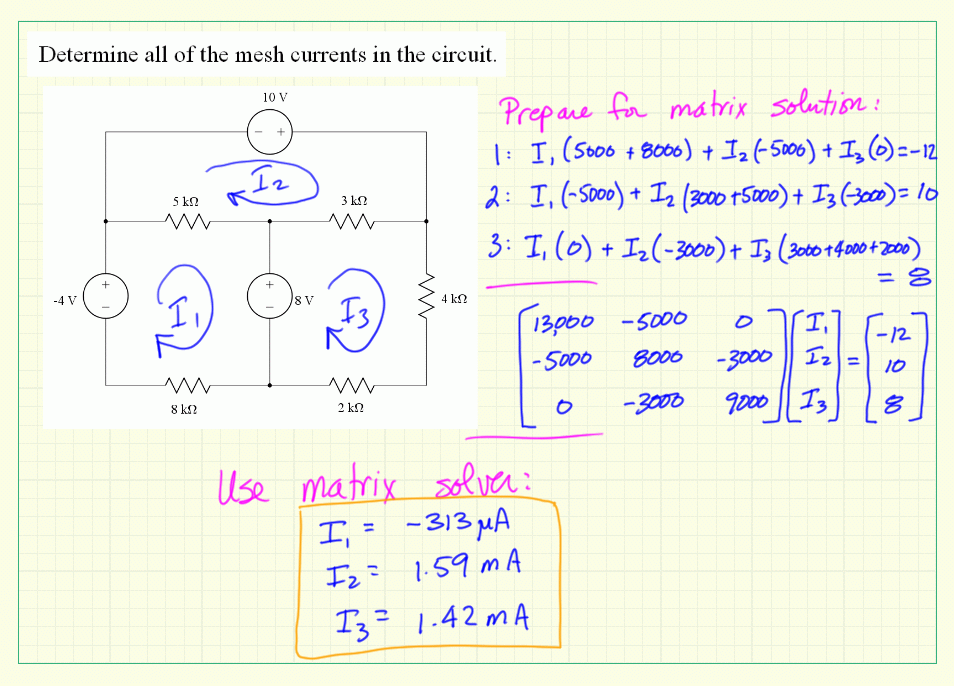

Define three mesh currents and write a KVL equation for each mesh. Use a matrix solver to solve for the mesh currents.
