Nodal Analysis
Dependent Sources
Problem #1

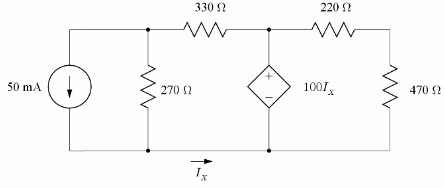

Use nodal analysis to determine whether the dependent voltage source is absorbing or delivering power to the rest of the circuit.
Need a hint?
Choose ground node so that the voltage source is grounded. Combine series resistances where possible to reduce the number of node voltage equations that must be written to one. Write the control current IX in terms of the circuit element values.
