Problem ID: 5
Problem Filename: mesh_dep_ex1
Keywords:
Circut Description:
- resistor
- independent voltage source
- dependent current source
Analysis Method:
- Mesh Current Analysis, Ohm's Law, Kirchhoff's Voltage Law
Math Method:
- Algebra
Mesh Analysis
Dependent Sources
Problem #1

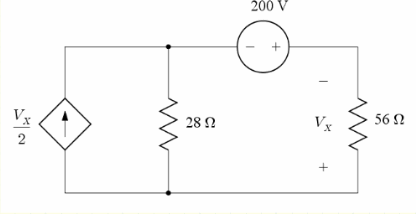

Use mesh current analysis to find Vx.
Need a hint?
Define two mesh currents, I1 and I2. I1 is controlled by the dependent current source, so equate the two. Write down an expression for Vx using Ohm's law. Write a mesh current equation for I2, and solve for I2. Substitute this into the expression for Vx.
