Mesh Analysis
Current Source in Two Meshes (Supermeshes)
Problem #2

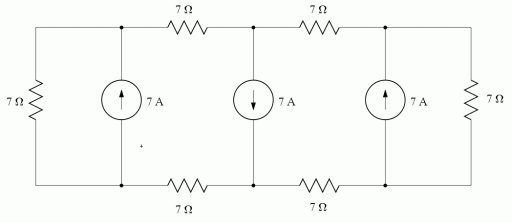

Determine each mesh current in this circuit.
Need a hint?
We have a supermesh here, so we only need to write one mesh equation. Relate all other meshes using the shared current sources. Write the equations in a matrix and solve for the mesh currents.
