Problem ID: 63
Problem Filename: mesh_owncs_ex2
Keywords:
Circut Description:
- Independent Current Source
- Resistor
Analysis Method:
- Mesh Current Analysis, Ohm's Law, Kirchhoff's Voltage Law
Math Method:
- Algebra
Mesh Analysis
Current Source in Single Mesh
Problem #2

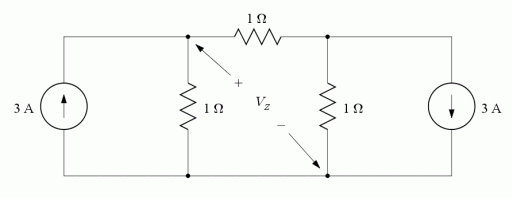

Use mesh current analysis to find Vz.
Need a hint?
Ignore the defined Vz at first and simply use mesh current analysis to find the mesh currents. Then use KVL around a closed loop that contains Vz and solve for Vz.
