Problem ID: 67
Problem Filename: nodal_super_ex2
Keywords:
Circut Description:
- Independent Voltage Source
- Resistor
Analysis Method:
- Nodal Analysis
- Supernode Analysis
- Power Formulas
Math Method:
- Algebra
Nodal Analysis
Floating Voltage Sources (Supernodes)
Problem #2

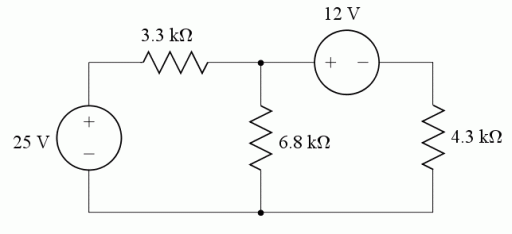

Use nodal analysis to determine the resistors that absorb the most and least power.
Need a hint?
Define a ground reference node. Label the other nodes of the circuit. Sum the currents away from those nodes and set the sum equal to zero. Be sure to use a supernode by ignoring a voltage source between Va and Vb and continuing to sum currents. Relate Va and Vb using the voltage source. Use power formulas to find all of the powers.
