Problem ID: 7
Problem Filename: nodal_indcs_3
Keywords:
Circut Description:
- resistor
- independent current source
Analysis Method:
- nodal analysis
Math Method:
- algebra
Nodal Analysis
Independent Current Sources
Problem #3

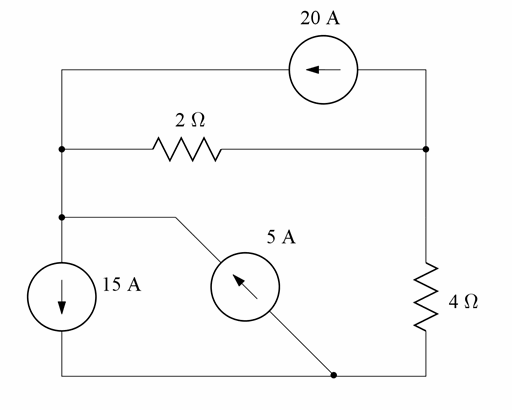

Determine which sources are delivering power and which sources are absorbing power.
Need a hint?
Find the node voltages, then determine the voltage across each source so that you can apply P = V×I
