Problem ID: 52
Problem Filename: nodal_indcs_ex2
Keywords:
Circut Description:
- Independent Current Source
- Resistor
Analysis Method:
- Nodal Analysis
Math Method:
- Algebra
Nodal Analysis
Independent Current Sources
Problem #2

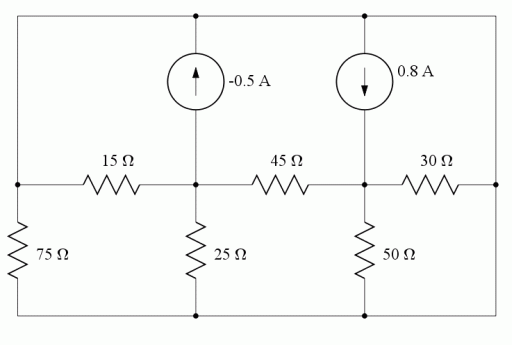

Use the node with the most connected branches as the ground reference, and then determine the remaining node voltages.
Need a hint?
After setting up the ground reference, define your node voltages. For each node, sum the currents leaving the node and set the result equal to zero. Solve the resulting system.
