Problem ID: 6
Problem Filename: nodal_gndvs_3
Keywords:
Circut Description:
- independent voltage source
- independent current source
- resistor
Analysis Method:
- nodal analysis
Math Method:
- algebra
Nodal Analysis
Grounded Voltage Sources
Problem #3

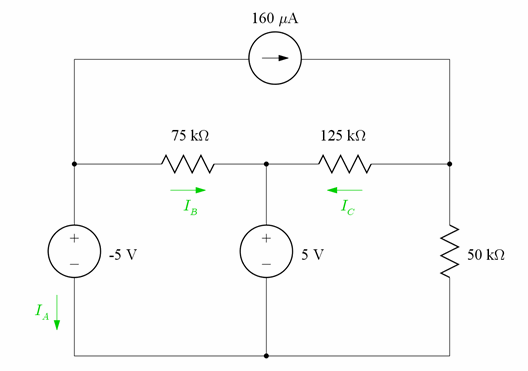

Find the indicated currents; use the node voltage method first.
Need a hint?
Once you have found the node voltages, find the voltage across each resistor so that you can find the two resistor currents.
