Problem ID: 4
Problem Filename: nodal_gndvs_4
Keywords:
Circut Description:
- resistor
- independent voltage source
Analysis Method:
- nodal analysis
Math Method:
- algebra
Nodal Analysis
Grounded Voltage Sources
Problem #4

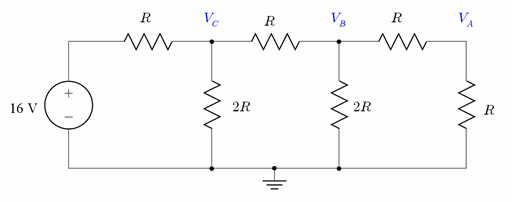

Find the value of R that will make VC = 8 volts. For this value of R, find VB and VA.
Need a hint?
Use nodal analysis to write equations for the three labelled node voltages. Set VC to 8 volts, and solve for R.
