Nodal Analysis

Grounded Voltage Sources

Problem #1

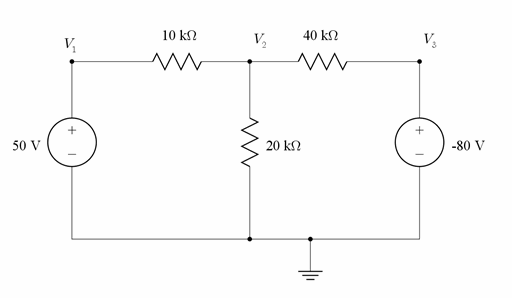

Find the three indicated node voltages using the node voltage method.

diagram
Need a hint?

Related files

Pspice

solution

Check your result

Additional files available

Video Transcript
