Problem ID: 50
Problem Filename: nodal_count_ex3
Keywords:
Circut Description:
- Independent Voltage Source
- Resistor
Analysis Method:
- Definition of Node
Nodal Analysis
Counting Nodes
Problem #3

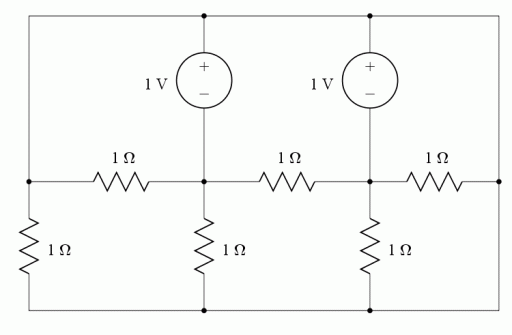

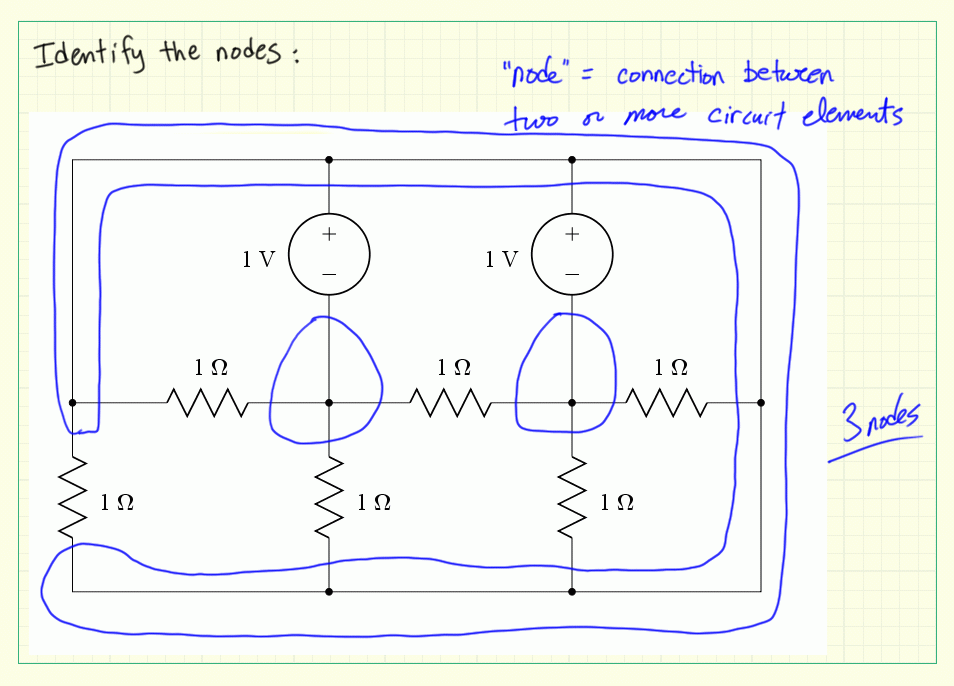

Determine the number of nodes in this circuit, and draw a closed contour around each node.
Need a hint?
Use the definition of a node to find all of the nodes here. Remember that a node is an area of interconnection between two or more circuit elements.
