Problem ID: 49
Problem Filename: nodal_count_ex2
Keywords:
Circut Description:
- Independent Voltage Source
- Resistor
Analysis Method:
- Definition of Node
Nodal Analysis
Counting Nodes
Problem #2

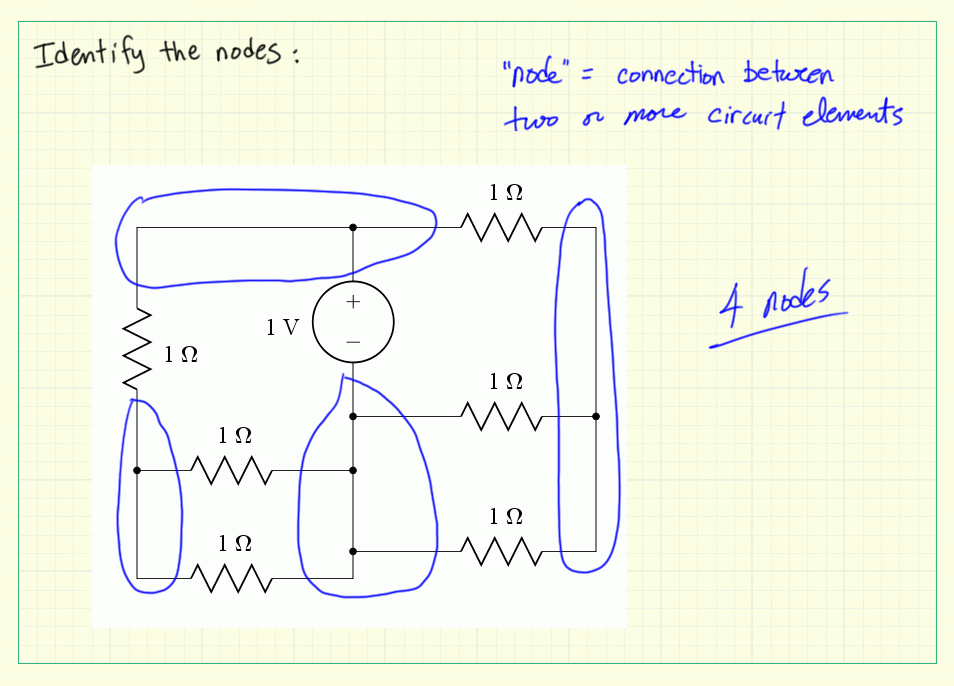

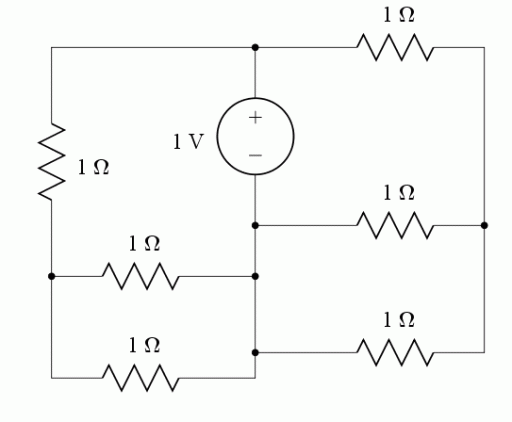

Determine the number of nodes in this circuit, and draw a closed contour around each node.
Need a hint?
Use the definition of a node to count the areas of interconnections on this circuit.
