Problem ID: 47
Problem Filename: cktvars_psc_ex3
Keywords:
Circut Description:
- Generic device
- Wire
Analysis Method:
- Passive Sign Convention Rules
Circuit Variables
Passive Sign Convention
Problem #3

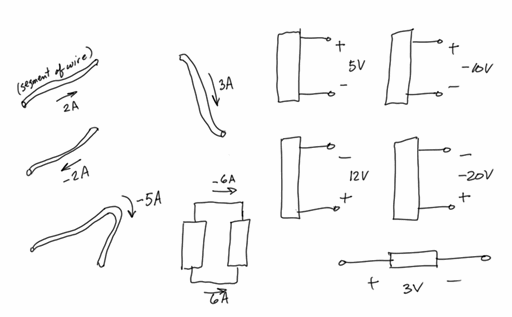

For labeled currents, draw an arrow to show the direction of positive current. For labeled voltages, circle the node that is at the highest potential.
Need a hint?
Use the definition of positive current to determine which way it flows. Then use the definition of potential difference to find the node at highest potential.
