Problem ID: 46
Problem Filename: cktvars_psc_ex2
Keywords:
Circut Description:
- Independent Voltage Source
- Resistor
- Independent Current Source
- Battery
Analysis Method:
- Passive Sign Convention Rules
Math Method:
- Algebra
Circuit Variables
Passive Sign Convention
Problem #2

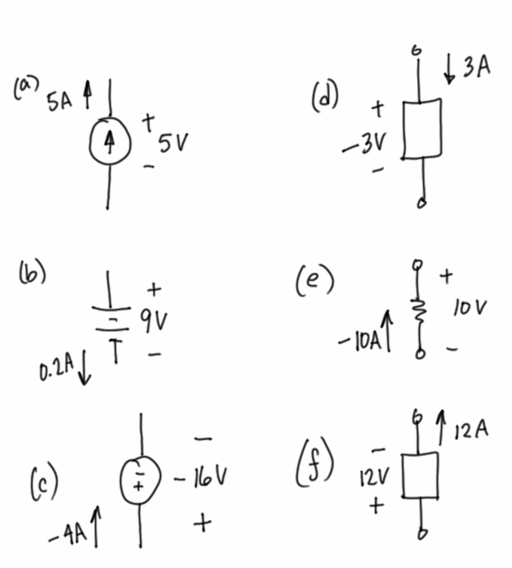

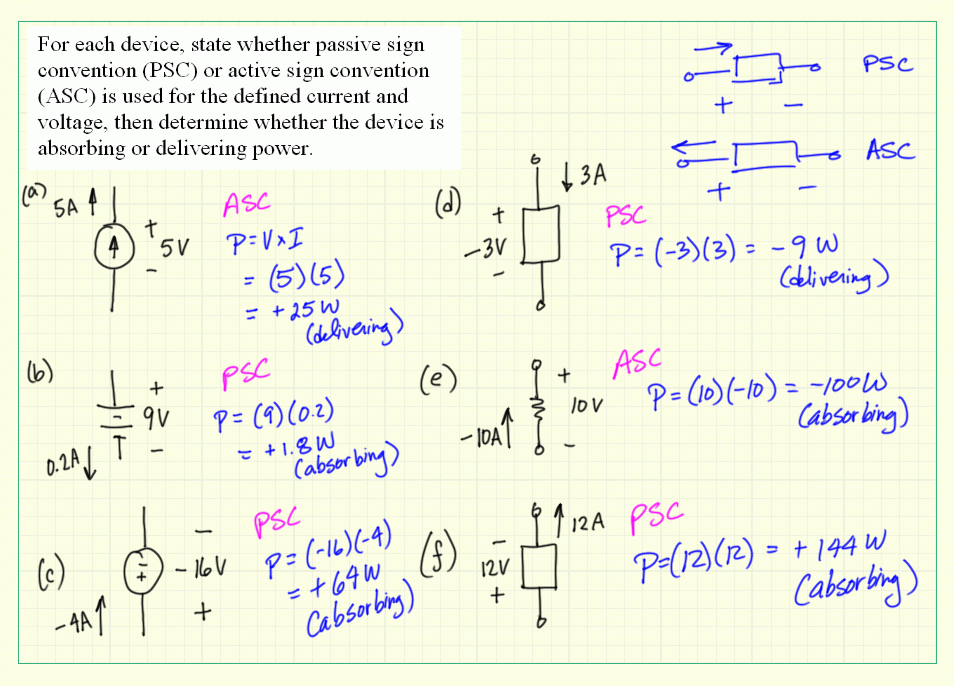

For each device, state whether Passive Sign Convention (PSC) or Active Sign Convention (ASC) is used for the defined current and voltage. Then determine whether the device is absorbing or delivering power.
Need a hint?
Review the rules for determining whether something follows PSC and ASC. Then remember that P = V*I. Be careful about the signs used.
