View All : Main > Topics > DC Circuits > Circuit Variables > Passive Sign Convention > Problem #1
Problem ID: 2
Problem Filename: cktvars_psc_ex1
Keywords:
Circut Description:
  • Independent Voltage Source
  • Resistor
  • Independent Current Source
  • Battery
Analysis Method:
  • Passive Sign Convention Rules

Circuit Variables

Passive Sign Convention

Problem #1

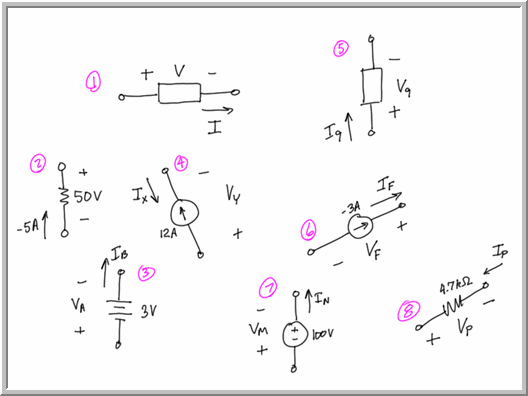

Which devices are labeled according to the passive sign convention (PSC)?
