Two-Port Networks
Impedance Parameters
Problem #4

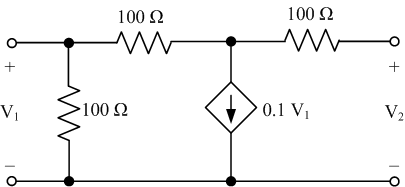

Determine the z parameters of the two-port circuit.
Need a hint?
Set I2=0 to find z11 and z21 . And then set I1=0 to solve for z12 and z22 .
|
