Two-Port Networks
Impedance Parameters
Problem #1

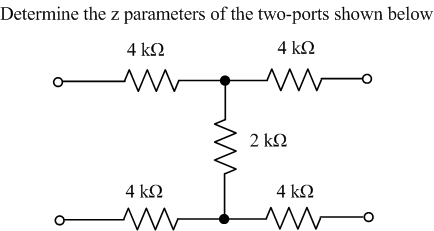

Determine the z parameters of the two-port circuit.
Need a hint?
Set I2=0 to find z11 and z21 . The circuit is reciprocal so that z12 =z21 . z22 is equal to z11 because this is a symmetric two-port network.
