Energy Storage Elements
Current-Voltage Relationship of Inductors
Problem #2

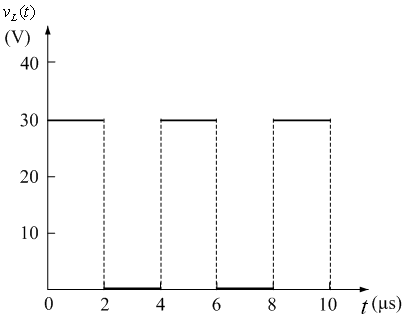

Given the voltage waveform applied across an inductor and that i(0) = 0, find i(t) for a 5H inductor.
Need a hint?
Find v(t) as an interval function of time. Then use the V-I relationship for an inductor to find the voltage for each interval.
