Energy Storage Elements
Current-Voltage Relationship of Inductors
Problem #1

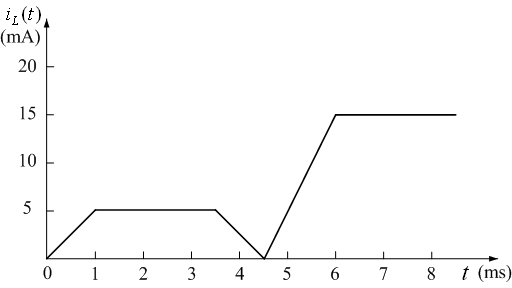

Given the waveform of current through an inductor, find the voltage across the inductor as a function of time.
Need a hint?
Find the interval function for i(t). Then use the V-I relationship for inductors to find the voltage at each interval.
