Energy Storage Elements
Equivalent Capacitance
Problem #1

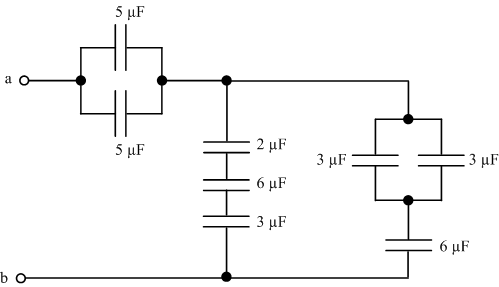

Find the equivalent capacitance across terminals a and b.
Need a hint?
Make two parallel combinations to get rid of the small "bulges" in the circuit. Then make two series combinations to reduce the circuit to three capacitors.
