Problem ID: 249
Problem Filename: energyStorage_capacOpAmp_ex2
Keywords:
Circut Description:
- capacitor
- resistor
- op amp
- waveform
Math Method:
- algebra
Energy Storage Elements
Capacitors and Op Amps
Problem #2

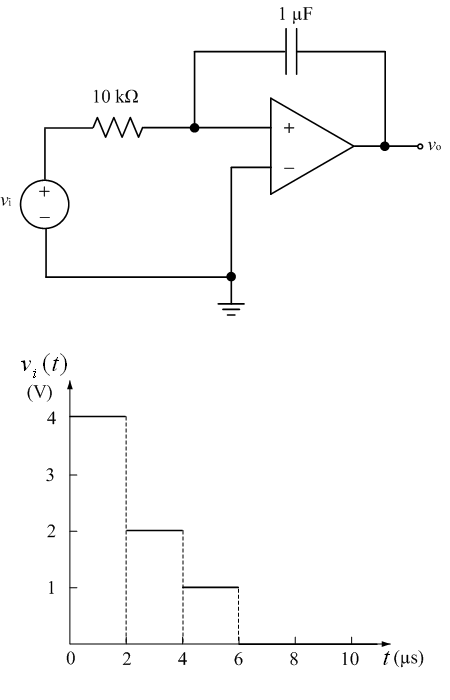

Given the input voltage shown in the figure below, determine vo(t). Assume the capacitor is fully discharged.
