Problem ID: 92
Problem Filename: thev_ind_ex3
Keywords:
Circut Description:
- Independent Current Source
- Resistor
Analysis Method:
- Thèvenin Equivalents
- Lookback Resistance
- Resistor Combinations
- Current Divider
Math Method:
- Algebra
Thèvenin Equivalents
Independent Sources
Problem #3

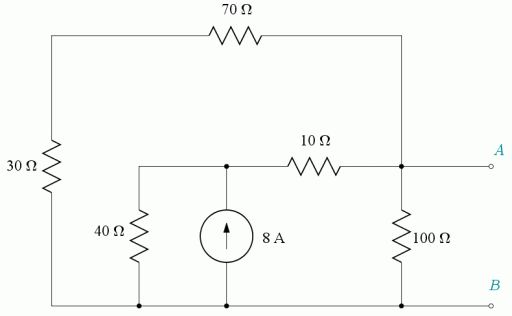

Find the Thèvenin equivalent circuit at the terminals A-B.
Need a hint?
Find Rt by "killing the source" and using the lookback resistance method. Then find Voc by combining resistors and using a current divider.
