Problem ID: 86
Problem Filename: cktels_depvs_ex1
Keywords:
Circut Description:
- Dependent Voltage Source
Analysis Method:
- Definition of Voltage Polarity
Math Method:
- Algebra
Circuit Elements
Dependent Voltage Sources
Problem #1

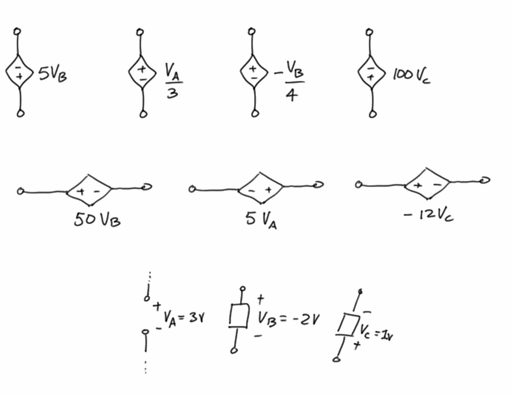

For each voltage source, draw a voltage label (polarity indicators and value) with the positive indicator at the top or to the right that is equivalent to the indicated voltage.
Need a hint?
Negate the value of sources whose polarities differ from our defined polarity.
