Problem ID: 79
Problem Filename: cktels_cs_ex1
Keywords:
Circut Description:
- Independent Current Sources
Analysis Method:
- Definition of Current Direction
Math Method:
- Algebra
Circuit Elements
Current Sources
Problem #1

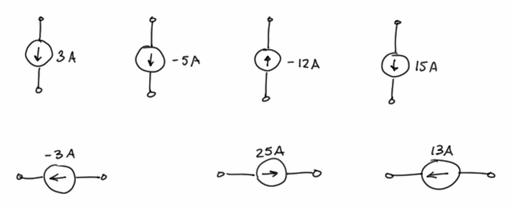

For each current source, draw a current label (arrow and value) pointing up or to the right that is equivalent to the indicated current.
Need a hint?
Remember to put a negative sign in front of the value of a current source whose defined current is in a different direction from our new label.
